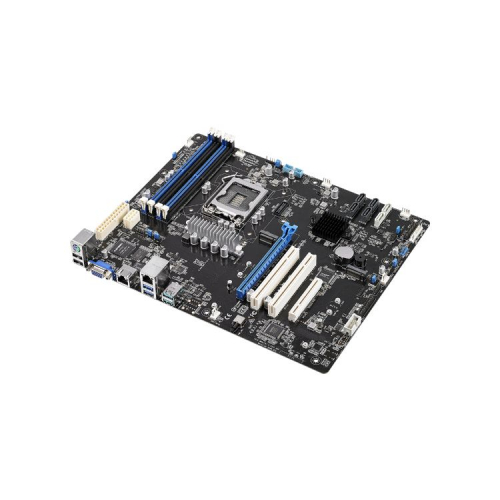

PLACA BASE ASUS SERVER P11C-X

Especificaciones:. . Processor / System Bus. . 1 x Socket LGA1151. Intel® Xeon® processor E-2100 family. Intel® Xeon® processor E-2200 family. The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor. . Core Logic. . Intel® C242 Chipset. . Memory. . Total Slots : 4 (2-channel). Capacity : Maximum up to 128GB UDIMM. Memory Type :. DDR4 2666/2400 UDIMM non ECC and with ECC. Memory Size :. 32GB, 16GB, 8GB. * Refer to support page for more information. . Expansion Slots. . Total Slot : 4. Slot Location 3 : PCI-E x8 (Gen3 X4 Link). Slot Location 4 : PCI 32bit/33MHz. Slot Location 5 : PCI 32bit/33MHz. Slot Location 6 : PCI-E x16 (Gen3 X16 Link). Follow SSI Location#. . Form Factor. . ATX (12''x9.6'', 305mm x 244mm). . Storage. . SATA Controller :. Intel® C242 Chipset. 6 x SATA 6Gb/s ports + 2 x M.2 connector(NGFF 22110/2280/2260/2242, gray SATA port will disable when M.2 is SATA signal). Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows). (Support Software RAID 0, 1, 5, 10 ). SAS Controller :. ASUS PIKE II 3008-8i 8-port SAS 12G RAID card. ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card. . Networking. . 1 x Intel® I210AT. 1 x i219-LM. . Graphic. . Aspeed AST2510 with 64MB VRAM. . On Board I/O. . 1 x TPM header. 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector). 1 x USB 3.0 pin header , Up to 2 Devices. 2 x USB 2.0 pin header , Up to 3 Devices. 6 x Fan Header , 4pin. 1 x Chassis Intruder. 2 x Front LAN LED. 1 x Serial Port Header. 1 x LPT. 2 x M.2 Connector , NGFF Type : 22110/2280/2260/2242. . Back I/O Ports. . 1 x PS/2 Keyboard/ Mouse Port. 2 x USB 3.1. 2 x USB 3.0. 2 x USB 2.0. 1 x VGA Port (onboard Aspeed AST2510). 2 x RJ45 LAN Ports
